Plastic Lever Pump LPP4

LPP4 lightweight and easy to use lever-operated pump is manufactured from the highest quality engineered plastics to provide excellent chemical resistance. Supplied in POLYPROPYLENE.

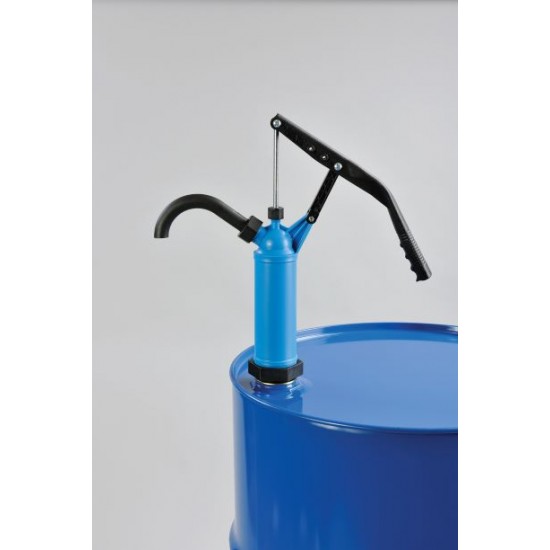

LPP4 Lever Operated Pump

• Colour: BLUE
• Wetted parts: polypropylene ~ viton ~ zinc plated steel
• Fluid: light oils ~ paraffin ~ diesel ~ some alcohols ~ water ~ water-based chemicals ~ mild solvents ~ anti-freeze

• Robust and durable plastic lever barrel pumps
• Flowrate: 0.5 litres per stroke ~ 30 litres per minute (approx.)
• Viscosity: 240 cSt / SAE20
• Outlet mm: 23
• Threaded 2″ and 1.1/2″ BSPM
• Riser tube: 3-piece telescopic – extends to 36″ (914mm)
• Weight: 1 kg

Insulated Anti-Static Grounding Wires

Static electricity may be generated by the operation of hand pumps – particularly rotary pumps. To prevent sparking caused by static build-up, when pumping flammable liquids, a bonding wire must be used. i.e., the container must be grounded to earth by means of a conductive earthing lead fastened between the container and a suitable grounded earth point.

In order to determine the materials needed to handle your fluid(s), please refer to our fluid compatibility chartt. By cross referencing fluid in question in the left-hand vertical column, with the materials along the top horizontal section, you will be able to establish which components will be suitable for your liquid. You can then select a pump from our range according to its material composition – i.e. ‘wetted parts’. Please ensure that the compatibility is rated ‘A’ or ‘B’.
